Modular (Prefabricated Panel) Horse Stalls

* Proudly Made in the USA! We ship nationwide. Click here for your FREE CATALOG!

Need help understanding how modular horse stalls can be used in your barn?

Visit Our Modular Stall Building Guide

One Piece Construction - No Posts Necessary! We can manufacture virtually any size stall panels you need!

Painted Steel Modular Horse Stalls Available in Black, or Hunter Green

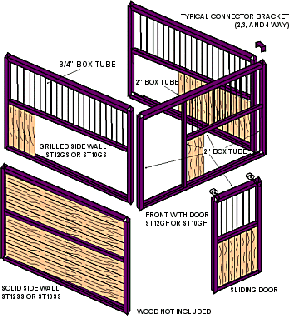

Painted Modular Horse Stall Front modular horse stall layout

Designed so that the fronts can be reversed to allow the sliding door position to be left or right. All latches are spring loaded and without protrusions to be safe and horse proof. Heavy brackets (2, 3, or 4 way) lock fronts and sides together and are provided at no extra charge. Stall height is 7½ ft. The door is equipped with an anti-liftoff bracket and stay brackets. Each stall front has a swing-out feed door and a swing-out on the stall door which acts as a gossip door.

Door rollers are designed for smooth and quiet operation. Fully welded construction using 2" structural steel for durability with 3/4" square tube grills on 4" centers make this stall portable and strong. Can be used as both a portable stall or set permanently!

No fastening of boards is necessary. Simply cut boards to length and drop into channels. Wood is not provided, but 2 x 6 tongue and groove is recommended for sturdiness and appearance.

* Insert boards vertically or horizontally, your choice!

* All of our combination feeders can be easily installed on the swing out feed door.

* Unique latches eliminate any sharp protrusions and operate with one hand.

 Aesthetic, tough, 2" square tube (16 gauge) frame (equivalent to 2½” round tubing) with 3/4" square tube grill bars (equivalent to 1" round tubing) on 4” centers (3¼” open space). Height of bars is 43”. Height of the wood sections are 40” for the sliding door, 41” for the stationary wall.

10 ft modular horse stall front

ST10GF 10' Front with Sliding Door and 2 Swing outs. $835.00

ST10GF Hunter Green:

ST10GF Black:

Questions? Call us at 800-335-1880!

10 ft modular stall sid wall with grills

ST10GS 10' Grilled Side Wall. $615.00

ST10GS Hunter Green:

ST10GS Black:

Questions? Call us at 800-335-1880!

10 ft solid modular stall wall

ST10SS 10' Solid Side Wall. $505.00

ST10SS Hunter Green:

ST10SS Black:

Questions? Call us at 800-335-1880!

12 ft prefab stall front

ST12GF 12' Front  with Sliding Door and 2 Swing outs. $895.00

ST12GF Hunter Green:

ST12GF Black:

Questions? Call us at 800-335-1880!

12 ft barred stall wall

ST12GS 12' Grilled Side Wall. $650.00

ST12GS Hunter Green:

ST12GS Black:

Questions? Call us at 800-335-1880!

solid side wall

ST12SS 12' Solid Side Wall. $535.00

ST12SS Hunter Green:

ST12SS Black:

Questions? Call us at 800-335-1880!

horse stall front

ST14GF 14' Front with Sliding Door and 2 Swing outs (sectional- 10' front with a modular interlocking 4' wide panel). $1185.00

ST14GF Hunter Green:

ST14GF Black:

Questions? Call us at 800-335-1880!

horse stall grilled sidewall

ST14GS 14' Side Grilled Wall (sectional- 10' wall with a modular interlocking 4' wide panel). $965.00

ST14GS Hunter Green:

ST14GS Black:

Questions? Call us at 800-335-1880!

prefab-horse stall wall

ST14SS 14' Solid Side Wall. (sectional- 10' wall with a modular interlocking 4' wide panel). $755.00

ST14SS Hunter Green:

ST14SS Black:

Questions? Call us at 800-335-1880!

Custom size stalls to fit your needs are available! Call us at 1-800-335-1880

Click Here for Assembly Instructions

Need Tongue and Groove Lumber For Your Stalls? Click Here
